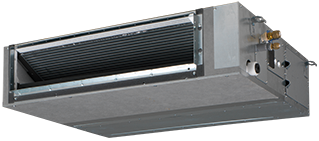

- Slimmest unit in class, only 245mm (300mm built-in height) and therefore narrow ceiling voids are no longer a challenge
- Quiet operation: down to 25dBA sound pressure level
- Medium external static pressure up to 150Pa facilitates using flexible ducts of varying lengths
- Possibility to change ESP via wired remote control allows optimisation of the supply air volume
- Discretely concealed in the wall: only the suction and discharge grilles are visible
- 15 class unit especially developed for small or well-insulated rooms, such as hotel bedrooms, small offices, etc.
- Multi zoning kit allows multiple individually-controlled climate zones to be served by one indoor unit
- Reduced energy consumption thanks to specially developed DC fan motor and drain pump
- Optional fresh air intake
- Flexible installation: air suction direction can be altered from rear to bottom suction and choice between free use or connection to optional suction grilles
- Standard built-in drain pump with 625mm lift increases flexibility and installation speed
Multi tenant (optional)
The indoor unit's main power supply can be turned off when leaving the hotel or office building.
Multi zoning (optional)
Allows up to 6 individual climate zones with one indoor unit
Home leave operation
Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
The unit can be used as fan, blowing air without heating or cooling.
Auto cooling-heating changeover (heat pump)
Automatically selects heating or cooling mode to achieve the set temperature.
Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
Fan speed steps (3 steps + auto)
Allows to select up to the given number of fan speed.
Allows humidity levels to be reduced without variations in room temperature.
Removes airborne dust particles to ensure a steady supply of clean air.
Weekly timer (optional)
Can be set to start heating or cooling anytime on a daily or weekly basis.
Infrared remote control (optional)
Starts, stops and regulates the air conditioner from a distance.
Wired remote control (optional)
Starts, stops and regulates the air conditioner.
Centralised control (optional)
Starts, stops and regulates several air conditioners from one central point.
The unit restarts automatically at the original settings after power failure.
Simplifies maintenance by indicating system faults or operating anomalies.
Drain pump kit (standard)
Facilitates condensation draining from the indoor unit.
