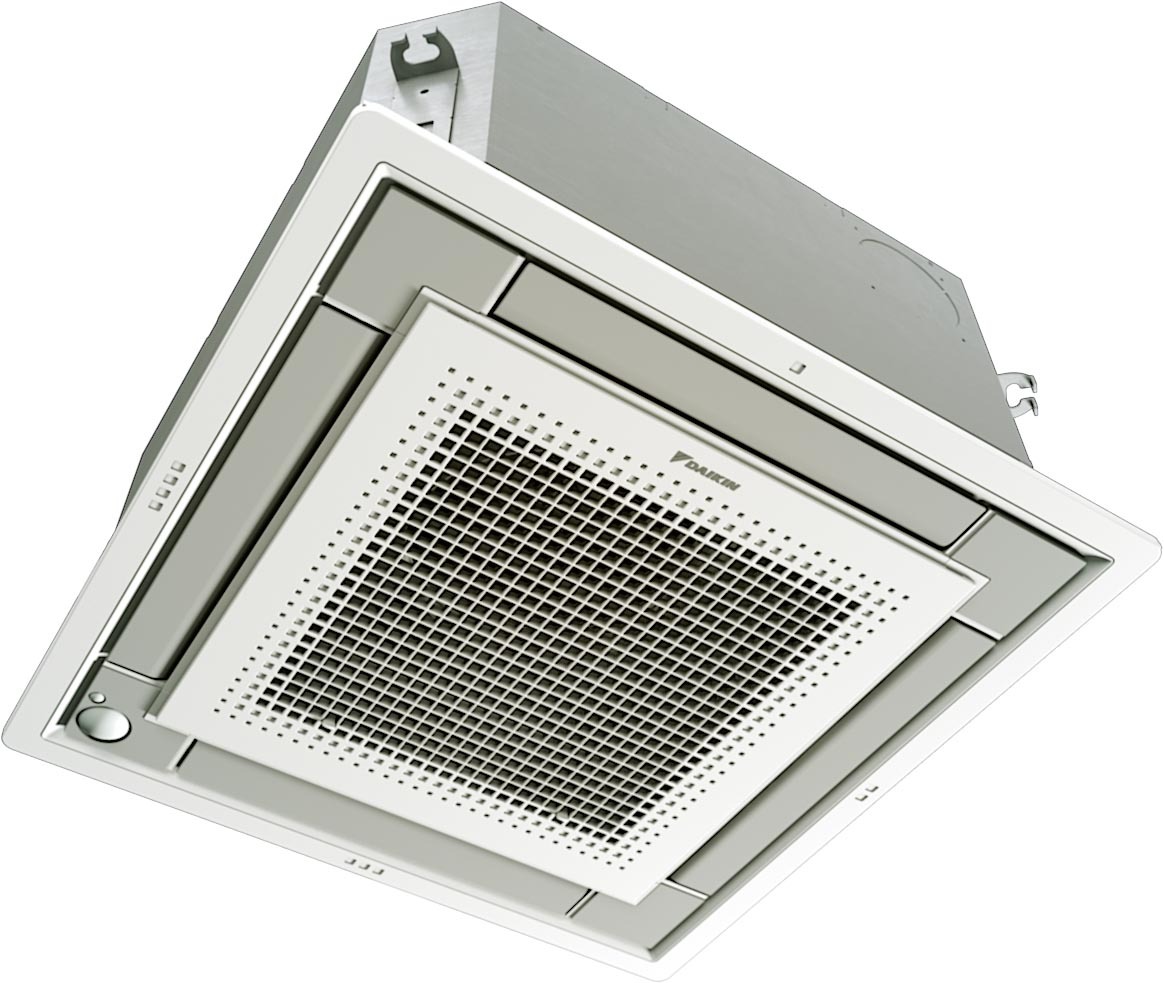

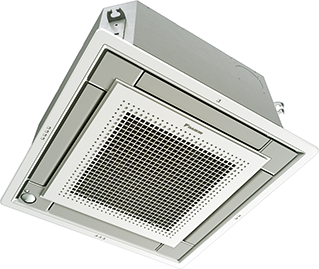

- Fully flat integration in standard architectural ceiling tiles, leaving only 8mm

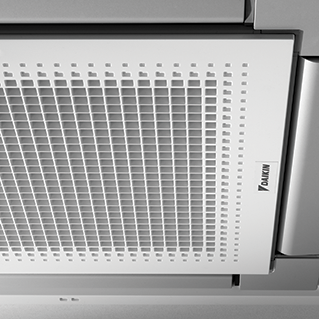

- Remarkable blend of iconic design and engineering excellence with an elegant finish in white or a combination of silver and white
- Two optional intelligent sensors improve energy efficiency and comfort
- 15 class unit especially developed for small or well-insulated rooms, such as hotel bedrooms, small offices, etc.
- Individual flap control: flexibility to suit every room layout without changing the location of the unit!
- Reduced energy consumption thanks to specially developed small tube heat exchanger, DC fan motor and drain pump
- Optional fresh air intake
- Standard drain pump with 630mm lift increases flexibility and installation speed
Presence & floor sensor (optional)
The presence sensor directs the air away from any person detected in the room, when the air flow control is on. The floor sensor detects the average floor temperature and ensures an even temperature distribution between ceiling and floor.
Daikin indoor units are whisper quiet. Also the outdoor units are guaranteed not to disturb the quiet of the neighbourhood.
Individual flap control
Individual flap control via the wired remote controller enables you to easily fix the position of each flap individually, to suit any new room configuration. Optional closure kits are available as well.
Multi tenant (optional)
The indoor unit's main power supply can be turned off when leaving the hotel or office building.
Home leave operation
Maintains the indoor temperature at your specified comfort level during absence, thus saving energy
The unit can be used as fan, blowing air without heating or cooling.
When starting to warm up or when the thermostat is off, the air discharge direction is set horizontally and the fan to low speed, to prevent draught. After warming up, air discharge and fan speed are set as desired.
Auto cooling-heating changeover
Automatically selects heating or cooling mode to achieve the set temperature.
Ceiling soiling prevention
Prevents air from blowing out too long in horizontal position, to prevent ceiling stains.
Vertical auto swing
Possibility to select automatic vertical moving of the air discharge flaps for efficient air and temperature distribution throughout the room.
Fan speed steps (3 steps + auto)
Allows to select up to the given number of fan speed.
Allows humidity levels to be reduced without variations in room temperature.
Removes airborne dust particles to ensure a steady supply of clean air.
Weekly timer (optional)
Can be set to start heating or cooling anytime on a daily or weekly basis.
Infrared remote control (optional)
Starts, stops and regulates the air conditioner from a distance.
Wired remote control (optional)
Starts, stops and regulates the air conditioner.
Centralised control (optional)
Starts, stops and regulates several air conditioners from one central point.
The unit restarts automatically at the original settings after power failure.
Simplifies maintenance by indicating system faults or operating anomalies.
Drain pump kit (standard)
Facilitates condensation draining from the indoor unit.
