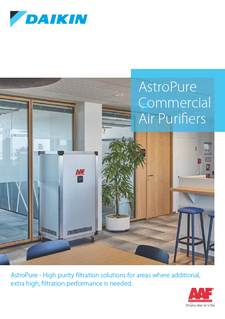

AstroPure - High purity filtration solutions for areas where additional, extra high, filtration performance is needed
- Self-contained stand-alone recirculation unit (1628mm height)
- Standard high efficiency HEPA H14 filters
- Optional UV germicidal irradiation
- Plug & Play
- Air flow rate 2000 m3/h
- For commercial areas up to 200 m2
Features & Benefits
- Suitable for in-room use or sheltered outdoor installation
- Combines HEPA filters and optional UV germicidal irradiation (UVGI)
- Designed with internal variable speed fan (electronically commutated) and filter combinations to meet specific application requirements
- Whisper-quiet operation through insulated double-wall construction
- Totally self-contained system for easy installation, operation, and maintenance
- Easy access and servicing of filters due to sliding tray design
- CE-compliance, VDI 6022 guided design
Applications
Schools and Universities
Healthcare
Shops and Shopping malls
Commercial Buildings
Hospitality
Filter options
Prefilters
The standard installation includes an ISO Coarse 70% prefilter providing the lowest possible total cost of ownership with lower resistance, longer filter life and protection of the installed HEPA filter.
RedPleat
- ISO 16890: ISO coarse 70%
- Low pressure drop
- High dustholding capacity (DHC)
- Available with Antimicrobial treated media (RedPleat ULTRA)
RedPleat Carb
- ISO 16890: ISO coarse 65%
- Low pressure drop
- High dustholding capacity (DHC)
- Effectively removes offensive odors
Main filters
The HEPA filter features eFRM filtration media which combines ultra-high efficiency and particulate loading to remove 99.99% of dust, pollen, mold, bacteria, viruses, and any airborne particle with a size of 0.3 microns or larger.
MEGAcel I eFRM
- H14 filtration efficiency according EN 1822
- eFRM media combines ultra-high efficiency with the lowest possible pressure drop
- Highly resistant to corrosive environments (acids, alkalis, and organic substances)
- No boron outgassing
- Compatible with Discrete Particle Counter (DPC) test methods
AstroCel III
- H14 filtration efficiency according EN 1822
- V-shaped filter configuration, combined with microglass media, delivers higher flow and the lowest possible pressure drop vs traditional box style HEPA filters
- Utilizes high performance microglass media to provide high efficiency particulate removal
- Compatible with Discrete Particle Counter (DPC) and photometric test methods as access and instrumentation allow
